PUSHER TRAY FURNACES
Fluidtherm manufactures two types of pusher furnaces- high temperature & low temperature
​
​
HIGH TEMPERATURE PUSHER FURNACES
TMax 1700°C (3092°F)​
​
PROCESS CAPABILITIES
​
-
Sintering of Fe PM parts, stainless steel parts, ceramic parts, MIM parts, hard metal (also carbonisation of tungsten powder) and diamond tools.
​​
EQUIPMENT FEATURES
​
-
Moly, Ta, NiCr, SiC or MoSi2
-
High alumina refractory
-
Automated loading & unloading
-
Tray return conveyor system
-
Smooth & soft tray handling
-
100% H2 or N2 + H2 (with optional humidification)
-
Multiple gas injection ports
-
Multipoint gas sampling
-
Safety monitoring of pressure, gas and water flow
-
Hydraulic or electromechanical pusher​

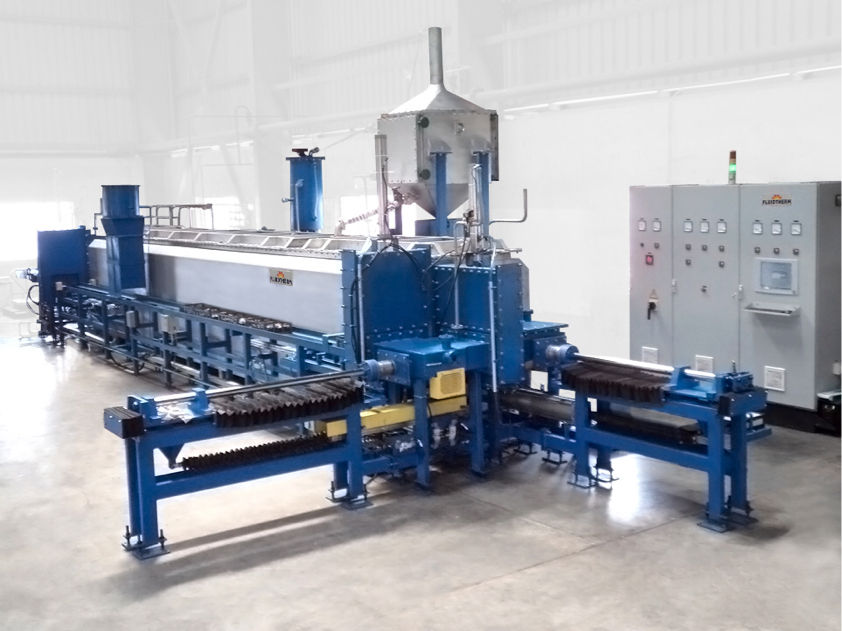

High Temperature, High Capacity Pusher >500 kg/hr
High Temperature, High Capacity Pusher for SS Parts
Low Temperature Pusher for Boilerless Steam Treatment
High Temperature, High Capacity Pusher >500 kg/hr
LOW TEMPERATURE PUSHER FURNACES
TMax 700°C (1292°F)
​
PROCESS CAPABILITIES
​
-
Steam treatment and gas alloying (GAT Process) of Fe PM parts and sintering of aluminium parts.
EQUIPMENT FEATURES
​
-
Convective heat transfer
-
Very high temperature uniformity (ΔT: 4°C )
-
All metal construction, no gas refractory interface
-
High atmosphere integrity
-
Automated loading & unloading
-
Tray return conveyor system
-
Smooth & soft tray handling
-
Multiple gas injection ports
-
Multiple gas injection ports
-
Safety monitoring of pressure and gas flow
-
Hydraulic or electromechanical pusher
